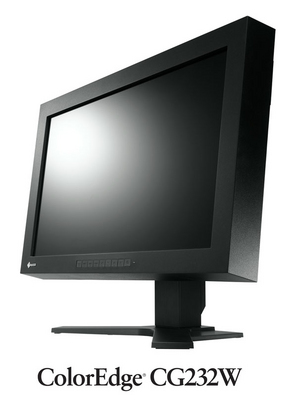

EIZO 22 ColorEdge CG232W Reference

1920 × 1200 native resolution 720:1 contrast ratio 380 cd/m2 brightness 170° viewing angles Digital, analog, and SDI inputs

Specific features The ColorEdge CG232W is the first LCD monitor for post-production and broadcasting that can be used for both reference and editing work. Model variations - Panel Size and Type 57 cm (22.5") TFT color LCD panel s-IPS Viewing Angles (H, V) 170°, 170° (at contrast ratio of 10:1) Brightness / Contrast 380 cd/m² (maximum), 100 cd/m² or less (recommended) / 720:1 (typical) Response Time 12 ms (typical) Native Resolution 1920 × 1200 Active Display Size (H x V) 483.8 × 302.4 mm Viewable Image Size Diagonal: 570 mm Pixel Pitch 0.252 × 0.252 mm Display Colors 1.07 billion from a palette of 68 billion Gamut Coverage: sRGB, Rec709, EBU, SMPTE-C 97%, 97%, 97%, 98% Adobe RGB 97% vs. NTSC 95% DCI 88% Look-Up Table: 12 bits per color Internal Processing: 16 bits per color Screen Uniformity: Entire Screen: ΔE≤3 Dot Clock Analog: 162 MHz, Digital: 162 MHz Scanning frequency (H, V) Analog 26 – 92 kHz, 23.8 – 86 Hz (non-interlace) Digital 26 – 78 kH, 23.8 – 61 Hz (VGA Text: 68 – 71 Hz) (non-interlace) Input Signals Analog: RGB Analog, Digital: DVI Standard 1.0, SD / HD-SDI (Dual Link) Output Signal SDI: SD / HD-SDI (Loop-through) Input Terminals DVI-D × 1, D-sub × 1 BNC × 2 (Single Link × 2 or Dual Link × 1) Output Terminals BNC × 2 (Single Link × 2 or Dual Link × 1) USB Ports / Standard 1 upstream, 2 downstream / USB 2.0 HDCP Supported: DVI-D3 Plug & Play VESA DDC 2B Power Power Requirements AC 100 – 120 V, 200 – 240 V: 50 / 60 Hz Power Consumption 110 W (maximum) Power Save Mode Less than 7 W Physical Specifications Height Adjustment Range 118 mm Tilt / Swivel / Pivot 40° Up, 0° Down / 35° Right, 35° Left / – Dimensions (W x H x D) With Stand: 567 × 481 – 599 × 255 mm 22.3 x 18.9 – 23.6 x 10.0” Without Stand: 567 × 389 × 113 mm 22.3 x 15.3 x 4.4” Net Weight With Stand: 13.4 kg / 29.5 lbs Without Stand: 8.8 kg / 19.4 lbs Auto Brightness Functions Auto Brightness Stabilization Auto Adjustment Functions Auto Adjustment Display Mode Options Color Mode (Custom, sRGB, EBU, Rec709, SMPTE-C, DCI, Calibration) Hardware Portrait Display Function - Picture in Picture Function - Screen Manager OSD Adjustment Functions Screen Adjustment Clock, Phase, Position, Resolution, Range (Auto), Signal Filter, Display Area (2k1k signal only), 12 bit mode (SDI-Dual input [RGB 4:4:4] only), Smoothing (5 stages), Border Intensity Basic Settings: Black Insertion, Pseudo Interlace, Range Extension , SDI, Reset Color Adjustment Black Level , Brightness, Temperature (in 500 K increments from 4,000 K – 10,000 K including 9,300 K), Gamma, Saturation, Hue, Gain, Reset Power Save Settings Analog PowerManager (VESA DPMS) Digital PowerManager (DVI DMPM) SDI: PowerManager (SDI PMTM) Other Settings Product Information (product name, serial number, resolution, operating time, pixel clock [DVI only], scan type [SDI only], format [SDI only]), OSD Menu Settings, Adjustment Lock, Languages (English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese), Off Timer, Power Indicator, Button Guide, Reset Audio - Certifications and Standards TÜV/Ergonomics (including ISO 13406-2), TÜV/GS, c-Tick, CE, CB, UL (cTÜVus), CSA (cTÜVus), FCC-A, Canadian ICES-003-A, TÜV/S, VCCI-A Supplied Accessories AC power cord, signal cables (DVI-D – DVI-D, DVI-I – D-Sub mini 15 pin), USB cable, setup guide, EIZO LCD Utility Disk (ColorNavigator software, PDF user's manual), adjustment certificate, quick reference, 4 screws for mount option, warranty card Warranty Five Years
