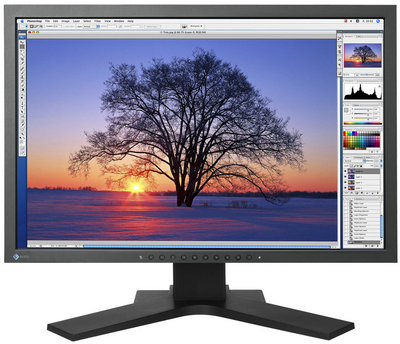

EIZO 22" ColorEdge CG222WK

1680 × 1050 native resolution 800:1 contrast ratio 200 cd/m2 brightness 178° viewing angles Dual DVI-I inputs Height adjustable stand

Specific features Wide gamut monitor ideal for high-end graphics work such as pre-press and digital photography. Features 12 bit hardware calibration and uniform brightness across the screen (sPVA panel). Model variations - Panel Size and Type 56 cm (22") TFT color LCD panel s-PVA Viewing Angles (H, V) 178°, 178° (at contrast ratio of 10:1) Brightness / Contrast 200 cd/m² (maximum) / 800:1 (typical) 80 cd/m² or less (recommended*) Response Time 8 ms (typical) Native Resolution 1680 ×1050 Active Display Size (H x V) 473.8 × 296.1 mm Viewable Image Size Diagonal: 558 mm Pixel Pitch 0.282 × 0.282 mm Display Colors Gamut Coverage sRGB 97%, Adobe RGB 92%, 16.77 million from a palette of 68 billion, Look-Up Table 12 bits per color, Internal Processing 16 bits per color Dot Clock Analog: 150 MHz, Digital: 120 MHz Scanning frequency (H, V) Analog 24 – 82 kHz, 47.5 – 86 Hz Digital 31 – 65 kHz, 47.5 – 61 Hz (VGA Text: 69 – 71 Hz) Input Signals Analog: RGB Analog, Digital: DVI Standard 1.0 Input Terminals DVI-I 29 pin × 2 (switchable), HDCP supported USB Ports / Standard 1 upstream, 2 downstream / USB Standard Rev. 2.0 Plug & Play VESA DDC 2B Power Power Requirements AC 100 – 120 V, 200 – 240 V: 50 / 60 Hz Power Consumption 38 W (typical) Power Save Mode Less than 2 W Physical Specifications Height Adjustment Range 82 mm Tilt / Swivel / Pivot 40° Up, 0° Down / 35° Right, 35° Left / 90° Dimensions (W x H x D) With Stand: 507 × 439 – 521 × 230 mm Without Stand: 507 × 333 × 74 mm Net Weight With Stand: 12 kg Without Stand: 7.7 kg Auto Brightness Functions Auto Brightness Stabilization, BrightRegulator Auto Adjustment Functions Auto Adjustment, Range Adjustment (analog only) Display Mode Options Fine Contrast (Custom, sRGB, Calibration, Emulation) Hardware Portrait Display Function - Picture in Picture Function - Screen Manager OSD Adjustment Functions Screen Adjustment Clock, Phase, Position, Resolution, Range, Signal Filter, Screen Size (full screen, enlarge, normal), Smoothing (5 stages), Border Intensity Color Adjustment Brightness, Independent 6-Color Control, Gamma, Temperature (in 500 K increments from 4,000 K – 10,000 K including 9,300 K), Saturation, Hue, Gain, Reset Power Save Settings Analog PowerManager (VESA DPMS), Off Timer Digital PowerManager (DVI DMPM), Off Timer Other Settings - Audio - Certifications and Standards CUDO certified mark, TCO'03, TÜV/Ergonomics (including ISO 13406-2), TÜV/GS, c-Tick, CE, CB, UL (cTÜVus), CSA (cTÜVus), FCC-B, Canadian ICES-003-B, TÜV/S, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, EIZO Eco Products 2006 Supplied Accessories - Warranty 5 Years *The usage time is limited to 30,000 hours or less, and the warranty period of the LCD panel and backlight is limited to three years from the date of purchase. The warranty period of the backlight is warranted only if the monitor is used within the recommended brightness of up to and including 80 cd/m² with a color temperature between 5,000 K – 6,500 K and limited to three years from the date of purchase subject to the usage time being less than or equal to 10,000 hours.
